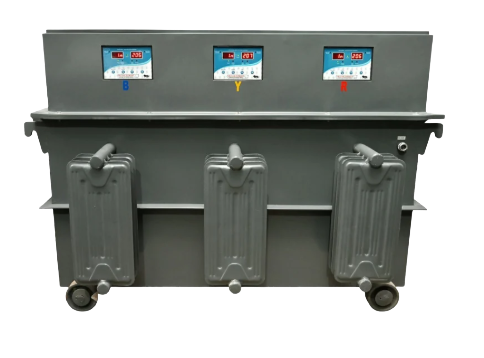

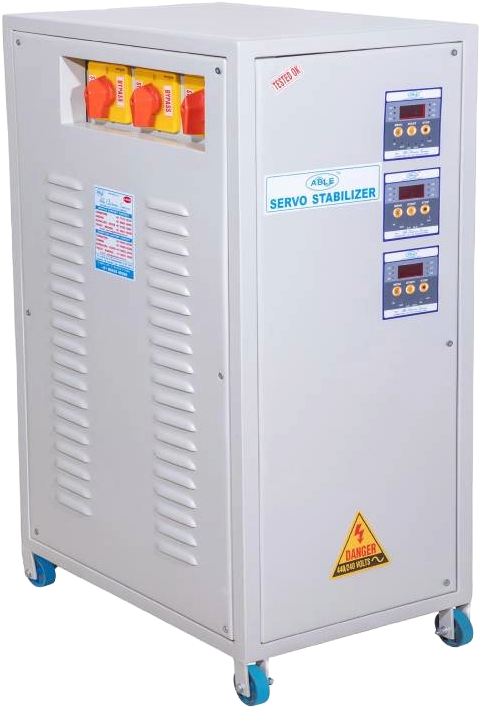

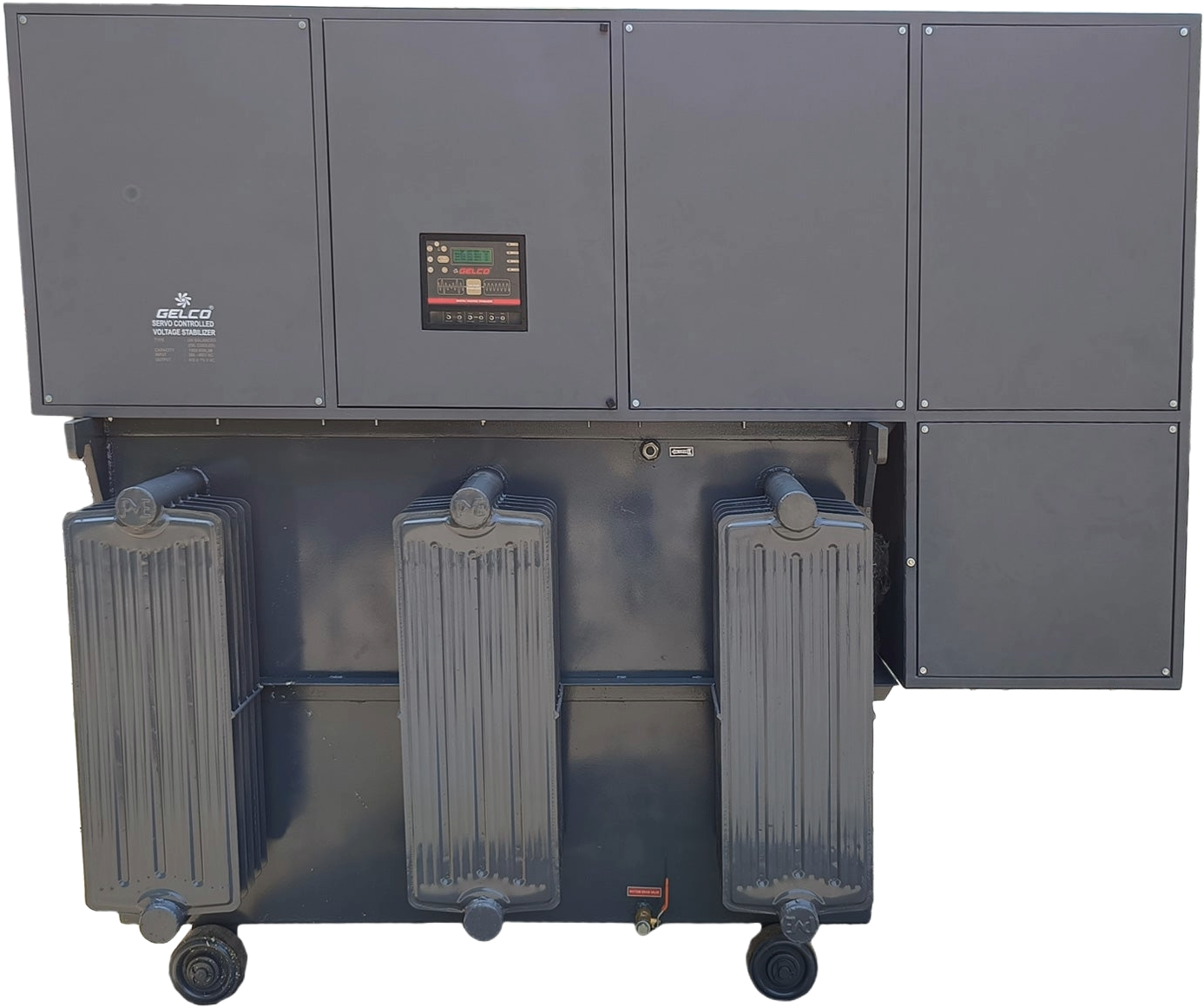

Servo Voltage Stabilizer
High-precision Servo Voltage Stabilizers designed to protect electrical equipment from voltage fluctuations and ensure consistent power supply.
Our stabilizers maintain constant output voltage using servo motor control technology. Ideal for industrial machinery, CNC machines, printing equipment, and commercial setups.
General Specifications
| Specifications | Value |
|---|---|
| Capacity | 5 KVA to 500 KVA |
| Phase | Single / Three Phase |
| Input Voltage Range | 300V – 460V (3 Phase) |
| Output Voltage | 415V ±1% |
| Control Type | Servo Motor Controlled |
| Cooling | Air / Oil Cooled |
| Efficiency | Up to 98% |
| Protection | Over/Under Voltage, Overload |
Servo Stabilizers
Servo Control Voltage Stabilizer
Nilkanth Power Solution is one of the leading manufacturers of Servo Controlled
Voltage Stabilizers for more than 33 years.
Suitable for Dairy Industry, Chemical Industry, Process Plants, Research
Establishments, Hotels, Hospitals and Commercial Applications.
Benefits
- ✔ Reduces electrical equipment breakdown up to 70%
- ✔ Better manpower & equipment utilization
- ✔ Energy saving from 5% to 25%
- ✔ Reduces MDI by 10% to 15%
- ✔ Improves power factor by 10% to 15%
- ✔ 98.5% operating efficiency
- ✔ Balanced / Unbalanced load support
- ✔ 1 Year unconditional warranty
- ✔ All India service network support
Features
- ✔ By-pass Switch (Optional)
- ✔ Input / Output Voltage Select Switch
- ✔ Stabilizer ON Push Button
- ✔ Vertical Type Dimmers
- ✔ Faster voltage correction
- ✔ Low maintenance carbon system
- ✔ Roller Carbon available up to 25 KVA 3-Phase
- ✔ Plug-in Microprocessor Control Card
- ✔ Powder Coated MS Enclosure
- ✔ Wheels for easy movement
- ✔ VIF Digital Display
- ✔ Individual Trip Indicator
- ✔ Main Incoming Supply Indicator
Protection
- ✔ Over Voltage Protection
- ✔ Under Voltage Protection
- ✔ Short Circuit Protection
- ✔ Overload Protection
- ✔ Single Phasing Prevented
- ✔ Phase Reversal Prevented
- ✔ Stable Output Voltage ±1%
Advanced Control & Display System
Smart control technology with durable enclosure design and complete monitoring system for smooth, reliable and safe operation.
Control System
Plug-in type Microprocessor-based control card for high reliability, better accuracy and easy maintenance.
MS Enclosure
Spacious pipe structure design with powder coated body for easy maintenance, durability and wheels for smooth movement.
Display & Indication
- ✔ VIF Indicator for Voltage, Current & Frequency
- ✔ Input & Output phase monitoring display
- ✔ Individual Trip Indicator
- ✔ Under Voltage / Over Voltage Alert
- ✔ Main incoming neon lamp for all phases
- ✔ Main supply indicator
Technical Specifications
High Performance Servo Stabilizer with Advanced Protection & Reliable Output
| Specification | Details |
|---|---|
| Input Voltage (3 Phase) | 360-460V / 340-480V / 300-500V |
| Input Voltage (1 Phase) | 160-270V / 180-280V / 130-260V |
| Output Voltage (3 Phase) | 415V / 400V / 380V |
| Output Voltage (1 Phase) | 240V / 230V / 220V |
| System Construction | Unbalanced Type |
| Output Regulation | ±1% |
| Overload Capacity | 120% |
| Correction Speed | 35V/sec / 70V/sec / 110V/sec |
| Waveform Distortion | Nil |
| Output Waveform | True Reproduction of Input |
| Cooling | Natural Air Cooled up to 125 KVA |
| Modes | Auto / Manual |
| Standard | IS 9815-1994 |
Servo Stabilizer Dimensions
Compact responsive design for Mobile & Desktop
| Sr. No. | Capacity | W (mm) | D (mm) | H (mm) |
|---|---|---|---|---|
| 1 | 5 KVA | 660 | 350 | 400 |
| 2 | 10 KVA | 660 | 400 | 680 |
| 3 | 15 KVA | 660 | 400 | 680 |
| 4 | 20 KVA | 660 | 400 | 680 |
| 5 | 25 KVA | 650 | 520 | 715 |
| 6 | 30 KVA | 850 | 520 | 770 |
| 7 | 35 KVA | 850 | 520 | 770 |
| 8 | 40 KVA | 850 | 520 | 770 |
| 9 | 50 KVA | 850 | 520 | 770 |
| 10 | 60 KVA | 1000 | 600 | 800 |
| 11 | 75 KVA | 1000 | 600 | 800 |
| 12 | 80 KVA | 1000 | 600 | 800 |
| 13 | 90 KVA | 1000 | 600 | 800 |
| 14 | 100 KVA | 1000 | 600 | 800 |
